The Planetary Ball Mill PM 300 is a powerful and ergonomic benchtop model with two grinding stations for grinding jar volumes up to 500 ml. This setup allows for processing up to 2 x 220 ml sample material per batch. Thanks to the high maximum speed of 800 rpm, extremely high centrifugal forces result in very high pulverization energy and consequently in short processing times.
The PM 300 is ideally suited for virtually all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility. Thanks to its enormous energy input of up to 64.4 times the acceleration of gravity, this mill is the perfect choice for tasks in research like mechanochemistry (co-crystal screening, mechanosynthesis, mechanical alloying and mechano-catalysis), or for ultrafine colloidal grinding on a nanometer scale.
Benefit from particularly ergonomic handling while achieving the same finenesses down to the nanometer range.

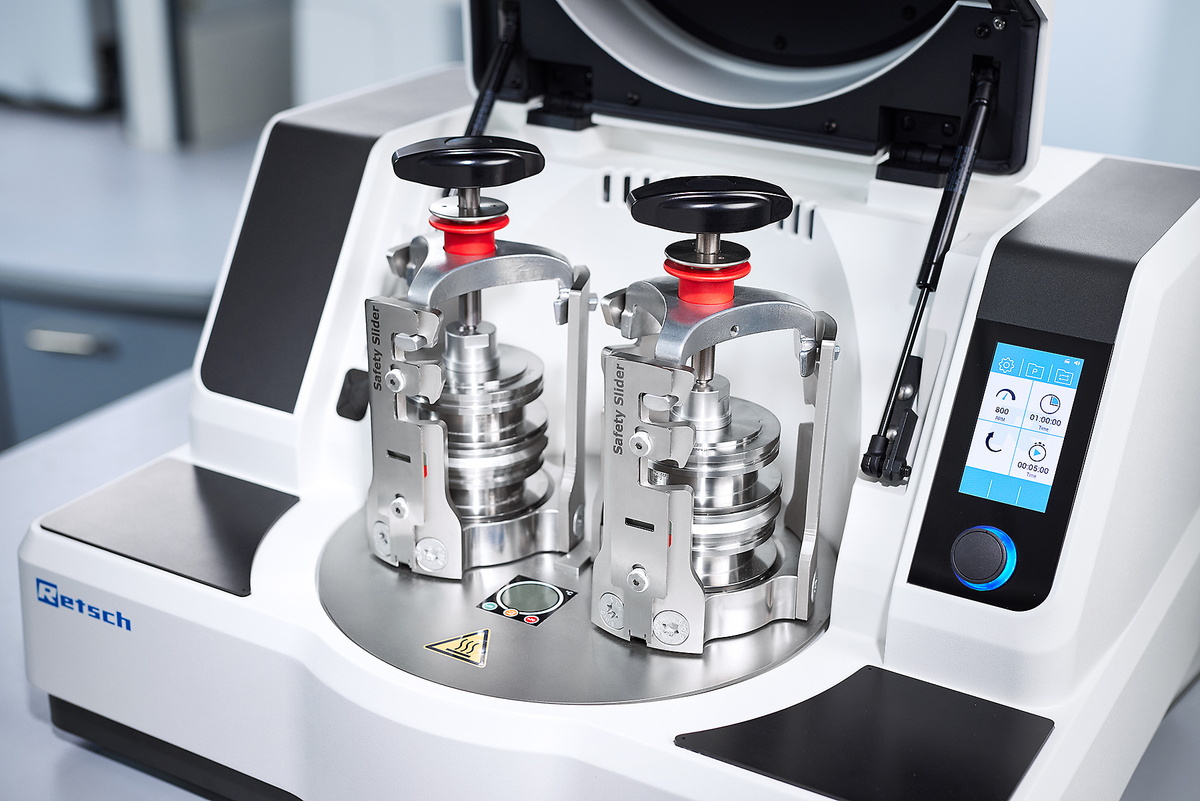

Operation of the RETSCH planetary ball mills is particularly safe. They feature a robust Safety Slider which ensures that the mill can only be started after the grinding jar has been securely fixed with a clamping device. The self-acting lock ensures that the jar is seated correctly and securely. This proven solid mechanical system is less failure-prone than electronic solutions - the user has full access to the sample at any time. When the electronic system fails, it is not possible to unlock the jars, for example. A unique safety feature of the PM 300 is an acoustic signal and notification in the display when the clamping unit has been fixed with the required force of 25 Nm. RETSCH offers a convenient clamping aid to facilitate the process. This is particularly helpful when the machine is operated in the upper speed range between 600 and 800 rpm.
Wet grinding is used to obtain particle sizes below 5 µm, as small particles tend to get charged on their surfaces and agglomerate, which makes further grinding in dry mode difficult. By adding a liquid or dispersant the particles can be kept separated.
To produce very fine particles of 100 nm or less (nano-scale grinding) by wet grinding, friction rather than impact is required. This is achieved by using a large number of small grinding balls which have a large surface and many friction points. The ideal filling level of the jar should consist of 60 % small grinding balls.
For more details on jar filling, wet grinding and sample recovery watch the video.
The video shows wet grinding in the Planetary Ball Mill PM 100.
The graphic shows the result of pulverizing titanium dioxide (TiO2) at 650 rpm and 800 rpm in the PM 300 and the net processing time. With the higher energy input at 800 rpm, the particle size decreases faster. However, the increased warming effects at 800 rpm should also be considered, as they might make longer breaks necessary.
Net processing time of titanium dioxide with 0.1 mm grinding balls in sodium phosphate solution
RETSCH Planetary Ball Mills are perfectly suited for processes like mechanical alloying or mechanosynthesis. For most reactions, the 1:-2 speed ratio of jar to sun wheel of the models PM 100 and PM 200 is fully adequate, as the ball charge produces enough impact energy. However, greater energy is required for some reactions. Here the PM 400 MA can be used with the increased speed ratio of 1:-2.5 or 1:-3.0.
The PM 300 works with a speed ratio of 1:-2, but in contrast to other models, it reaches up to 64.4 x acceleration of gravity thanks to the maximum speed of 800 rpm and the large sun wheel. Together with the option to use four small, stackable grinding jars sized 12 to 80 ml for small scale operations, or two jars sized up to 500 ml for upscaling purposes, this planetary ball mill is highly suitable for research applications in mechanochemistry.
Achievable acceleration in different planetary ball mills dependent on speed setting
The performance and the result of sample preparation are also determined by the choice of the grinding jar and its ball charge. The EasyFit range of jars has been specially designed for extreme working conditions such as long-term trials, even at maximum speed of 800 rpm, wet grinding, high mechanical loads and maximum speeds as well as for mechanical alloying. This line of jars is suitable for all RETSCH planetary ball mills.
The new EasyFit grinding jar series features a structure on the bottom of the 50-500 ml jars called Advanced Anti-Twist (AAT). This ensures that the jars are tightly fixed without the risk of twisting, even at high speed, and that wear and tear is drastically reduced. Secure clamping of the jars is made much easier: to find the correct clamping position, a maximum twist of 60° is required.
The geometry of the EasyFit jars in the 50 ml and 250 ml sizes has been enlarged in diameter and reduced in height compared to the previous "comfort" models. This offers two advantages: better grinding results and interchangeable lids, as there are only three diameter dimensions for the entire grinding jar range.
Diameter categories
With a special adapter, co-crystal screening can be carried out in a planetary ball mill, using disposable vials such as 1.5 ml GC glass vials. The adapter features 24 positions arranged in an outer ring with 16 positions and an inner ring with 8 positions. The outer ring accepts up to 16 vials, allowing for screening up to 64 samples simultaneously when using the Planetary Ball Mill PM 400. The 8 positions of the inner ring are suitable to perform trials with different energy input, e.g. for mechanosynthesis research.
Both the aeration lid and GrindControl can now be equipped with inlays of different materials. Thus, the lid can be used for, e. g. a steel and a zirconium oxide jar by simply exchanging the inlay.
To produce optimum grinding results, the jar size should be adapted to the sample amount to be processed. The grinding balls are ideally sized 3 times bigger than the largest sample piece. Following this rule of thumb, the number of grinding balls for each ball size and jar volume is indicated in the table below. To pulverize, for example, 200 ml of a sample consisting of 7 mm particles, a 500 ml jar and grinding balls sized at least 20 mm or larger are recommended. According to the table, 25 grinding balls are required.
| Grinding jar nominal volume |
Sample amount | Max. feed size | Recommended ball charge (pieces) | ||||||
| Ø 5 mm | Ø 7 mm | Ø 10 mm | Ø 15 mm | Ø 20 mm | Ø 30 mm | ||||
| 12 ml | max. ≤5 ml | <1 mm | 50 | 15 | 5 | - | - | - | |
| 25 ml | max. ≤10 ml | <1 mm | 95 – 100 | 25 – 30 | 10 | - | - | - | |
| 50 ml | 5 – 20 ml | <3 mm | 200 | 50 – 70 | 20 | 7 | 3 – 4 | - | |
| 80 ml | 10 – 35 ml | <4 mm | 250 – 330 | 70 – 120 | 30 - 40 | 12 | 5 | - | |
| 125 ml | 15 – 50 ml | <4 mm | 500 | 110 – 180 | 50 – 60 | 18 | 7 | - | |
| 250 ml | 25 – 120 ml | <6 mm | 1100 – 1200 | 220 – 350 | 100 – 120 | 35 – 45 | 15 | 5 | |
| 500 ml | 75 – 220 ml | <10 mm | 2000 | 440 – 700 | 200 – 230 | 70 | 25 | 8 | |
If a pulverization process in a planetary ball mill is successful depends on the machine settings but also on the filling level of the grinding jar. The usable volume of the jars depends on the type of sample material. The number of grinding balls given in the table reflect the minimum amount per jar. A better result is obtained with a larger number of suitable balls, if indicated. In exceptional cases, the number of balls can be reduced by not more than 15%; however, that will result in increased wear of the grinding tools.
RETSCH planetary ball mills are perfectly suitable for size reduction of, for example, alloys, bentonite, bones, carbon fibres, catalysts, cellulose, cement clinker, ceramics, charcoal, chemical products, clay minerals, coal, coke, compost, concrete, electronic scrap, fibres, glass, gypsum, hair, hydroxyapatite, iron ore, kaolin, limestone, metal oxides, minerals, ores, paints and lacquers, paper, pigments, plant materials, polymers, quartz, seeds, semi-precious stones, sewage sludge, slag, soils, tissue, tobacco, waste samples, wood, etc.
11 g sample
50 ml tungsten carbide grinding jars
4 x 20 mm tungsten carbide grinding balls
4 min at 400 rpm
85 g sample
125 ml zirconium oxide grinding jars
7 x 20 mm zirconium oxide grinding balls
12 min at 500 rpm
100 g sample + 190 ml sodium-phosphate solution
500 ml zirconium oxide grinding jars
1 kg 2 mm zirconium oxide grinding balls
3:30 min net-grinding at 650 rpm
Grinding breaks help to keep temperature lower
125 g sample
500 ml zirconium oxide grinding jars
8 x 30 mm zirconium oxide grinding balls
3 min at 350 rpm
Our instruments are recognized as the benchmark tools for a wide range of application fields in science and research. This is reflected by the extensive citations in scientific publications. Feel free to download and share the articles provided below.
| Feladat | pulverizing, mixing, homogenizing, colloidal milling, mechanical alloying, mechanochemistry, co-crystal screening |
| Alkalmazási terület | biológia, geológia / fémkohászat, gyógyászat / gyógyszergyártás, gépgyártás / elektronika, kémia, környezetvédelem / újrahasznosítás, mezőgazdaság, építőanyagok, üveg / kerámia |
| Minta jellege | kemény, rideg, lágy, rostos - száraz vagy nedves |
| Aprítási technika | ütközés, súrlódás |
| Betölthető max. méret* | < 10 mm |
| Végfinomság* | < 1 µm, kolloidőrlésnél < 0,1 µm |
| Sarzs/betölthető mennyiség* | max. 2 x 220 ml |
| Őrlőhelyek száma | 2 |
| Fordulatszámarány | 1 : -2 |
| Nap-tárcsa fordulatszáma | 50 - 800 min-1 |
| Nap-tárcsa effektív átmérője | 180 mm |
| Gyorsulás | 64 g |
| Őrlőedény típusa | optional areation covers, safety closure devices |
| Őrlőszerszámok anyaga | hardened stainless steel, wolfram-karbid, achát, szinterelt korund, cirkónium-oxid |
| Őrlőedények térfogatai | 12 ml / 25 ml / 50 ml / 80 ml / 125 ml / 250 ml / 500 ml |
| Stackable grinding jars | 12 ml / 25 ml / 50 ml / 80 ml |
| Adapter for single-use glas vials | 24 x 1.5 ml / 7 x 20 ml |
| Őrlési idő | digitális, 00:00:01 - 99:59:59 között |
| Szakaszos működés | igen, forgásirány megfordításával |
| Őrlési időszakasz | 00:00:01 - 99:59:59 között |
| Megszakítási időszakasz beállítható | 00:00:01 - 99:59:59 között |
| Eltárolható módszerek (SOP) száma: | 12 |
| Tárolható ciklusprogramok | 4 |
| Bevitt energia mérése lehetséges | igen |
| Digitális csatlakozási helyek | USB, RASPI |
| Meghajtás | 3-fázisú aszinkron-motor frekvenciaváltóval |
| Teljesítményfelvétel | 2,5 kW |
| Elektromos hálózat feszültsége | 200-240 V, 50/60 Hz |
| Hálózati csatlakozás | 1-fázis |
| Védelem módja | IP 20 |
| Teljesítményfelvétel | ~ 3335 VA |
| Méretek (zárva): szél x mag x mély | 745 x 525 x 580 mm |
| Súly, netto | ~ 118 kg |
| Szabványok | CE |
| Szabadalom | igen |
Az őrlőedény excentrikus módon van felhelyezve a bolygóműves-golyós malom "Nap-tárcsájára". A "Nap-tárcsa" és a ("bolygó") őrlőedény ellentétes irányú forgása fordulatszámának aránya 1:-2. Az őrlőedényben lévő őrlőgolyókat az ún. Coriolis-erők bonyolult rotációs mozgásra kényszerítik.
A golyók és az edény eltérő sebessége a súrlódási és az ütközési hatások olyan kölcsönhatását hozza létre, mely nagy mozgási energiákat szabadít fel. Ezen erők összjátéka eredményezi a bolygóműves-golyós malmok nagy és rendkívül hatékony mértetcsökkentő képességét.
